TW-i-ACE-P100

Insulation Pin Stud Welder

 The ACE-P100 incorporates the latest technology into a compact, rugged, and portable machine. With an updated user interface and system design, this unit has the capacity to weld pins up to 10 gauge and CD studs up to #10 faster than ever (15-30 pins per minute). Links:  Spec Sheet     User Manual

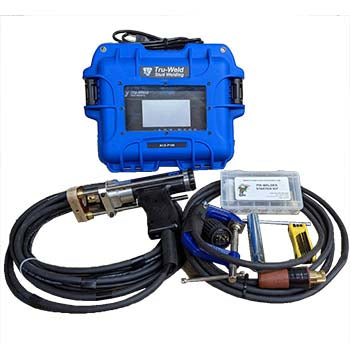

Includes:

  • Power Supply

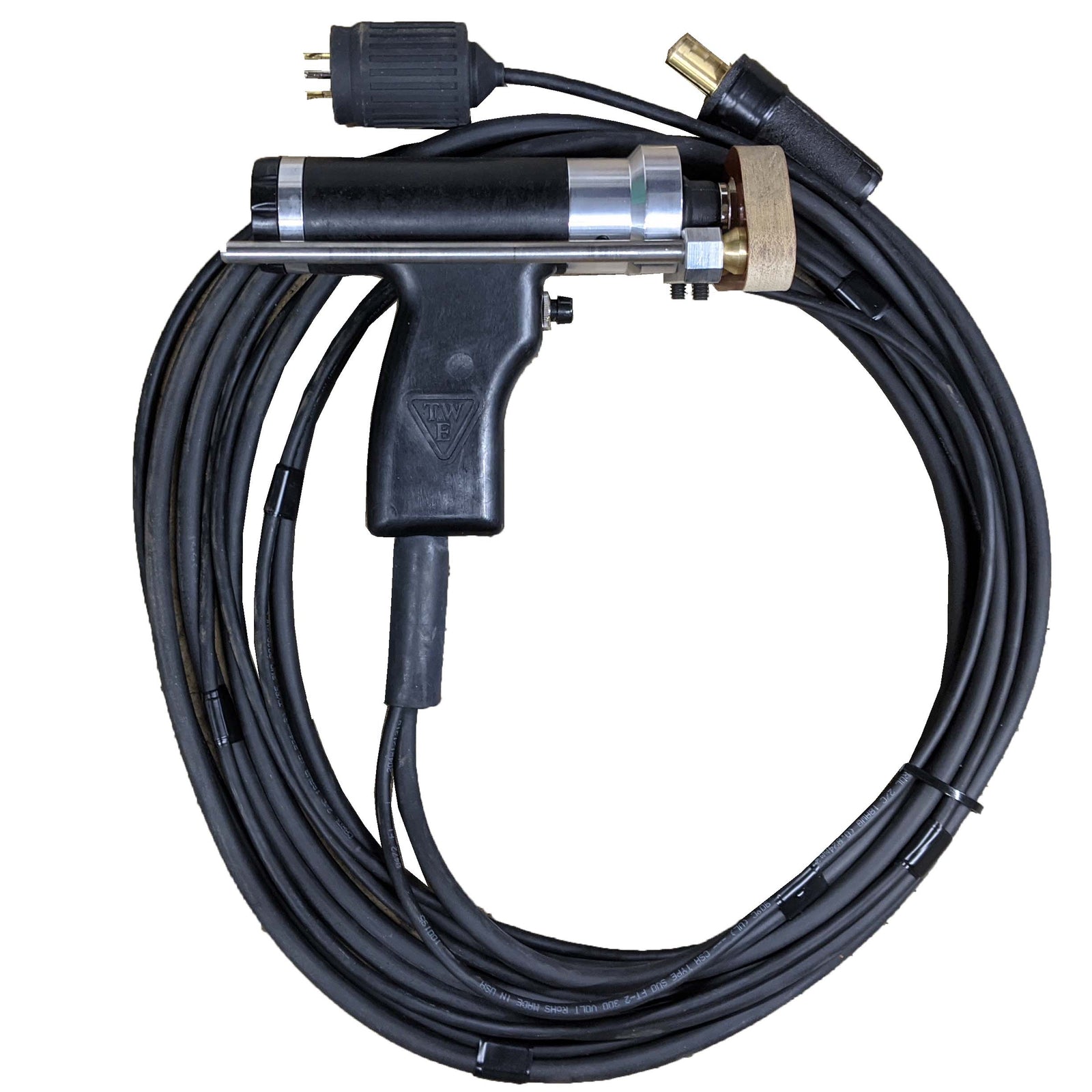

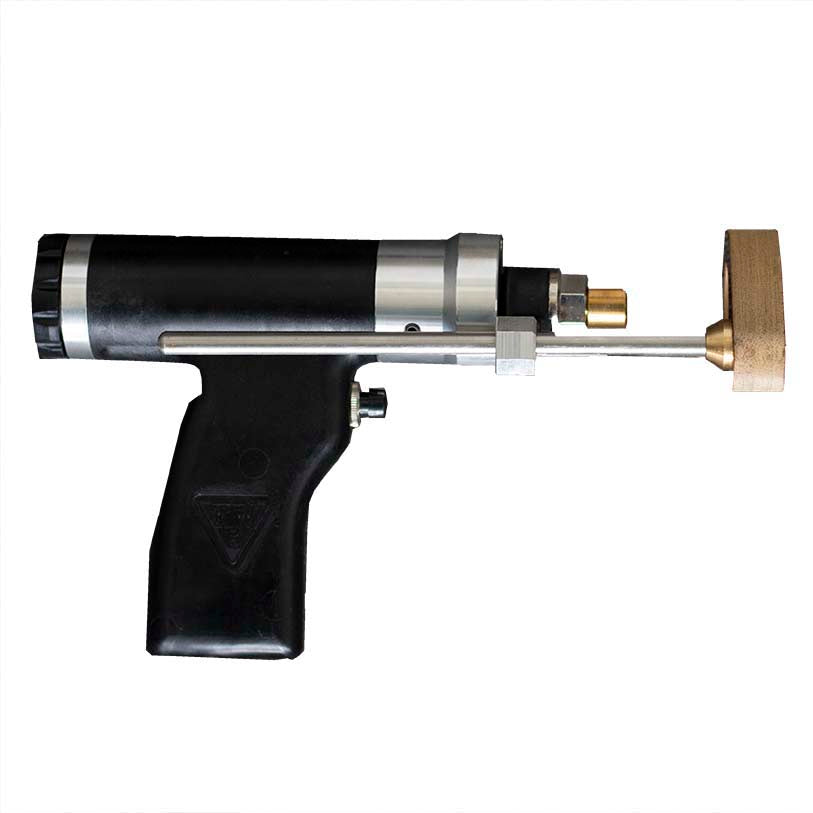

  • Pin Gun with 25 Ft of Cable

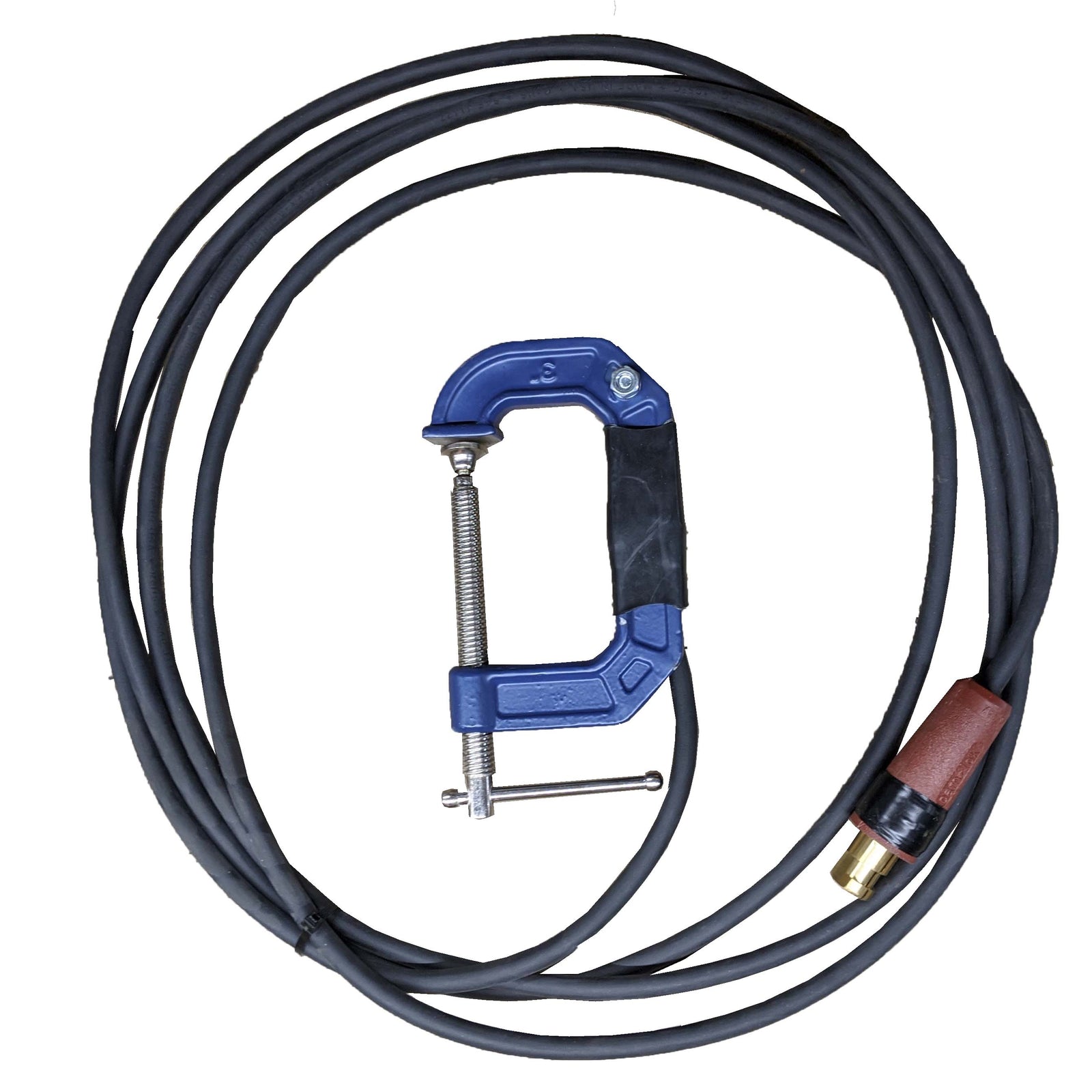

  • 12 Ft Ground Cable
  • Shoulder Strap
  • 2 Adjustable 7" CD legs
  • 1 CD foot
  • 1 Allen Wrench

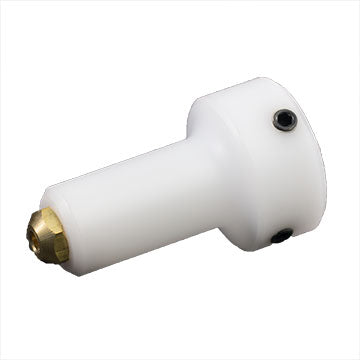

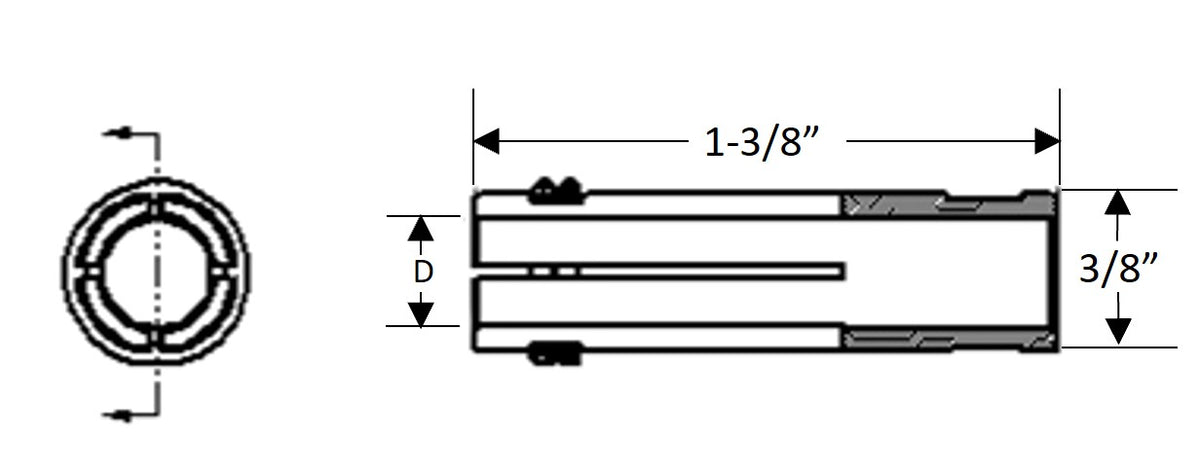

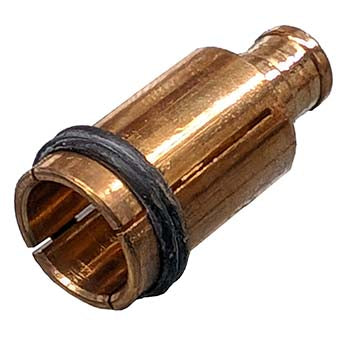

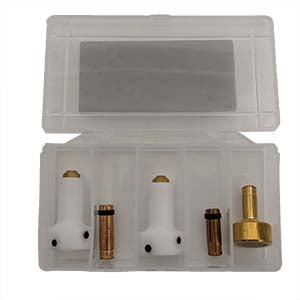

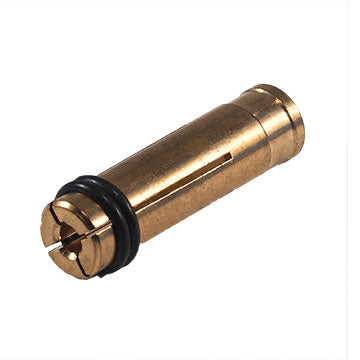

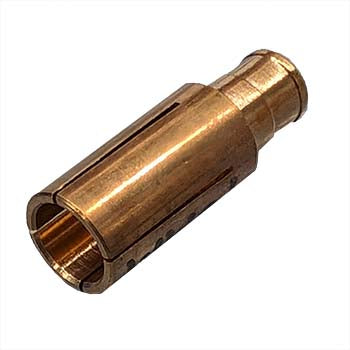

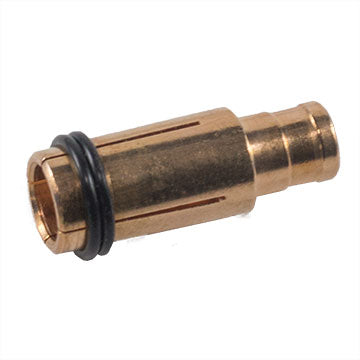

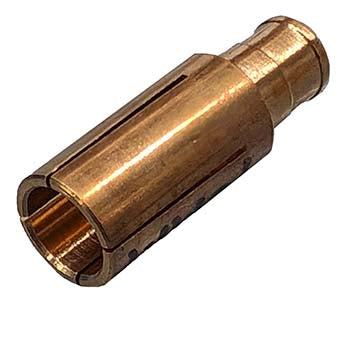

  • 1 "B" Collet and Collet Protector 10 gauge
  • 1 "B" Collet and Collet Protector 12 gauge
  • 1 Magnetic Cup Head Chuck Heavy Duty

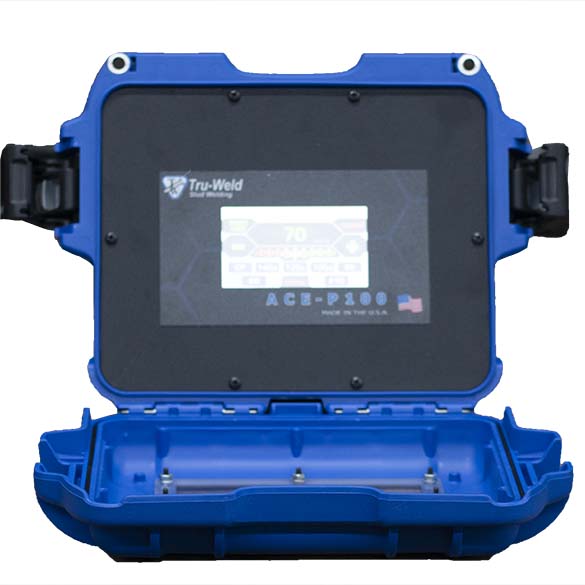

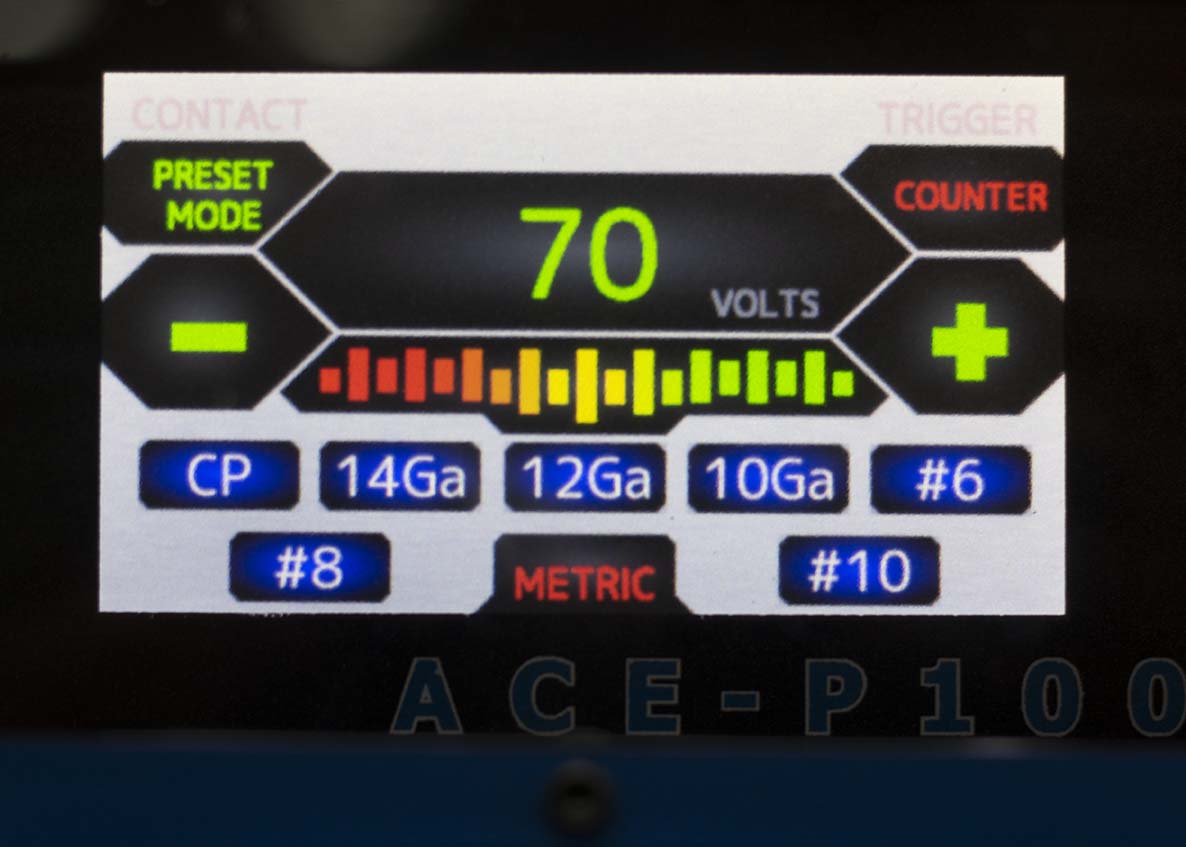

  • • Intuitive Touchscreen Interface with Preset values for fast, accurate, and repeatable weld settings

    • Set-Point Discharge: Unit discharges directly to a new set point without needing to discharge completely

    • Universal Input Voltage: Plug and play, no need to re-tap the machine for llOV or 220V input voltages

    • Low input voltage capability enables operation with long extension cords

    • Contact and Trigger Indicators for fast troubleshooting of hand tool and weld cable maintenance issues

    • Thermal and Voltage protection indicators to protect the unit from damage due to overheating or poor input power

    • Mounted in a rugged outer case for greater durability and appearance

    • Hand tool has been ergonomically designed to reduce operator fatigue for increased welding efficiency

    • Hand tool has an adjustable internal spring to apply the correct spring pressure for every welding application

    • Hand tool can be configured for B collets, collet inserts, Euro collets, or standard tapered chucks

    • More details can be found in the manual
