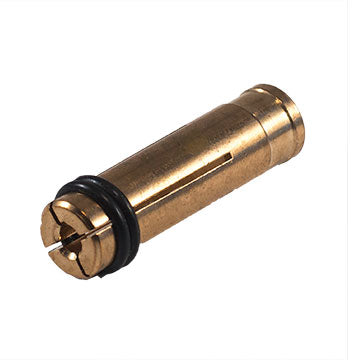

"B" Collets

B Collet Schematic with Dimensions for Stud Welding

BC086

"B" Collets

$7.50 - $14.00

1-3/8" Length, Outer Diameter = 3/8", 25 Sizes Available including Imperial and Metric Sizes. "B" Collets for Insulation (10 ga, 12 ga and 14 ga) can be found here.

Requires a B Stop if welding threaded CD studs.

Size	Hanlon Stud Welding	Truweld/Proweld	Image	Midwest Fasteners	Erico/KSM
#2	BC086			101-0102-29, 101 0102 29	039-423
#3 (3/32")	BC093			101-0102-34, 101 0102 34	003-627
#4 (10 Ga)	BC105	CDB-010	CLJ10	101-0102-16, 101 0102 16	028-870
#5 (1/8")	BC125	CDB-012	CLJ12	101-0102-28, 101 0102 28	003-558
#6	BC138	CDB-013	CLJ13	101-0102-34, 101 0102 34	003-631
5/32"	BC156			101-0102-31, 1010102 31	001-806
#8	BC164	CDB-015	CLJ16	101-0102-18, 101 0102 18	003-633, 003 633
0.177	BC177			101-0102-39, 101 0102 39
#10 (3/16")	BC190	CDB-018	CLJ19	101-0102-19, 101 0102 19	010-01
#12 (.215)	BC215	CDB-021		101-0102-42	048-397
1/4"	BC250	CDB-025	CLJ25	101-0102-20	003-635
5/16"	BC312	CDB-031	CLJ31	101-0102-25,	036-622
3/8"	BC375	CDB-037	CLJ37	101-0102-33	033-976
3mm	BC3MM	CDB-003M	CLJM3	101-0104-03
4mm	BC4MM	CDB-004M	CLJM4	101-0104-04
5mm	BC5MM	CDB-005M	CLJM5	101-0104-05
6mm	BC6MM	CDB-006M	CLJM6	101-0104-06
8mm	BC8MM	CDB-008M	CLJM8	101-0104-08

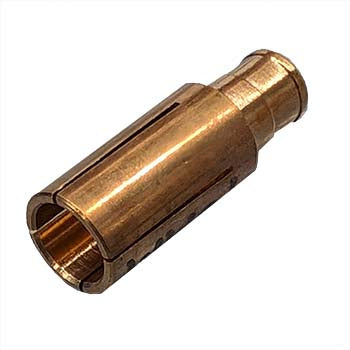

10mm	BC10MM	CDB-010M	CLJM10	101-0104-10
