Truweld Heavy Duty Arc Stud Gun 17000

Free Shipping   Made in the USA   Satisfaction Guaranteed

  • Weld Range up to 1-1/4"
  • Configured to work with any brand stud welder
  • Approximately 5 lbs excluding cables, connectors and footpiece
  • Gun only and cables only, DOES NOT INCLUDE POWER SUPPLY

The TWE17000 medium duty stud gun has a welding range from 1/8" through 1-1/4" diameter studs.  The gun comes with 8.5 ft of 4/O weld cable and 8 ft of control cable.

The TWE17000 has been designed to fit comfortably for all hands, including wearing a work glove.  The neck of the handle has been tapered so that when grasped, the trigger can be accessed easily, without any unnecessary strain.  The handle length allows for better balance of the stud gun and it keeps the welding cable and connector away from your hand, minimizing operator fatigue.

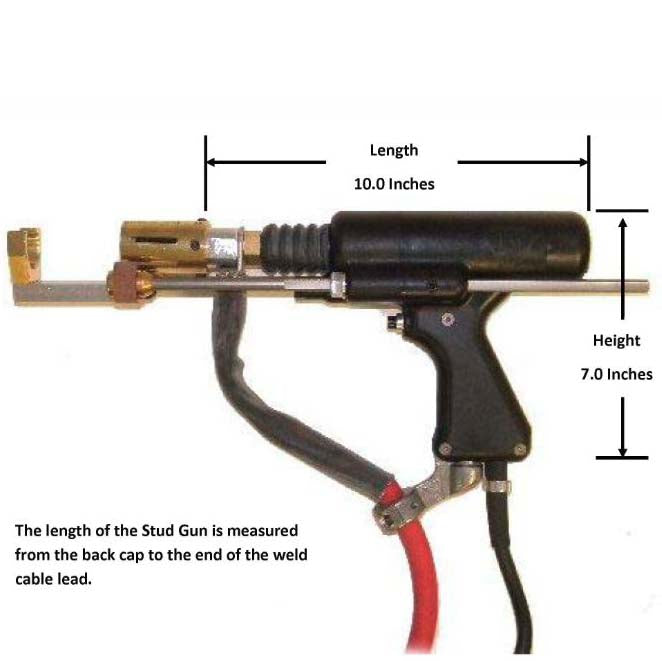

 The TWE17000 is approximately 10" long from the weld cable to the back cap, and approximately 7" long from the top of the stud gun to the bottom of the handle.  The overall weight of the stud gun is approximately 5.2 lbs excluding cables, connectors, legs and footpiece.

The TWE17000 can be ordered to operate with any brand stud welding equipment.  A technical representative will contact you after you place your order to discuss your the make and model of your welder and your welding application.

Call our technical experts if you have any questions at 1-800-426-5667.
