  • ACS275X075W5/16-18X058MSCC-100

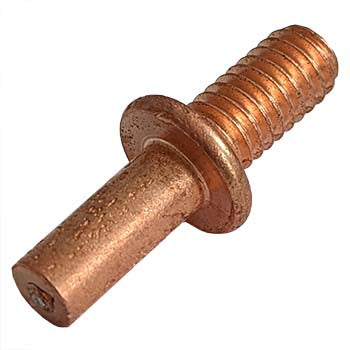

    274 X 3/4" with 5/16-18 X 5/8" Arc Collar Stud MS CC with C Ferrules

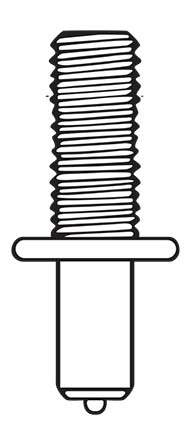

    The collar on these partially threaded drawn arc weld studs acts as a spacer between the workpiece and parts installed on the studs after they have been welded to the workpiece. A short base section is melted off during the welding process. Sometimes called Partially Threaded Drawn Arc Weld Studs with Collar, the studs form strong, vibration-resistant welds that provide a tight seal against water, oil, air, or gas leaks at the weld point.

    Material: Low Carbon Steel, Copper Coated

    Length: Length is before weld.  Will be approximately 1/8" shorter after welding.

    Thread: Standard UNC2A

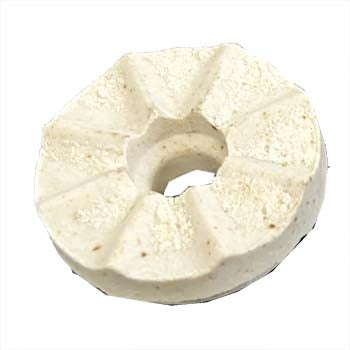

    Ferrules: Includes required ceramic ferrules (insulators) (Other types of ferrules available on request)

    Flux: Solid Fluxed

    Mechanical Properties (as cold drawn):

    • Tensile: 61,000 psi min
    • Yield Strength: 49,000 psi min
    • Elongation (% in 2 in.): 17% min.
    • Elongation (% in 5x dia.): 14% min
    • Reduction in Area: 50% Min

    Quantity: 100 pcs
