AC138

Arc Chuck Standard Adjustable

Size Guide

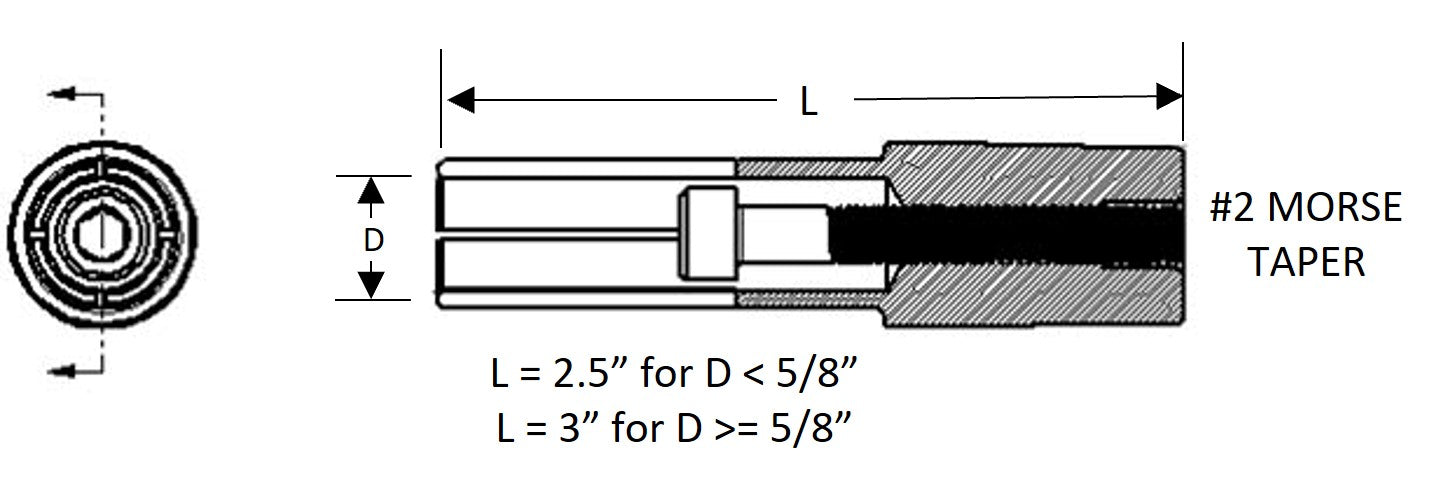

The drawn arc chuck standard is the most widely used chuck suitable for use in drawn arc and capacitor discharge (CD) stud welding applications. Each arc chuck comes with an internal, adjustable depth stop.  These chucks have a #2 Morse taper which will fit a variety of stud guns.

Stud welder arc chucks are sometimes called stud welder tips or stud welder holders as they are inserted into the end of a stud welding gun to hold the stud before and during application.

The  stud welder drawn arc chucks are compatible with include most stud welder brands Including Truweld, Nelson, Proweld, Midwest Fasteners, Image, HBS and many more.


Size Hanlon Stud Welding Nelson  Proweld Truweld Image Midwest Fasteners Erico/KSM
12 Gauge AC105 CN-010, CN 010 C10 102-0101-20, 102 0101 20
#6  AC138

500001002, 500-001-002, 500 001 002

CN-013, CN 013 C13 102-0103-13, 102 0103 13 015-512, 015 512
10 Gauge AC138 500001002, 500-001-002, 500 001 002 CN-013, CN 013 C13 102-0103-13, 102 0103 13

015-512, 015-512

#8 AC164 500001006, 500-001-006, 500-001-006 CN-015, CN015 C16 102-0101-14, 102 0101 14 015-514, 015 514
#10 AC190 500001005 500-001-005, 500-001-005 CN-018, CN 018 C19 102-0101-01, 102 0101 01 015-515, 015 515
.215 AC215 500001004, 500-001-004, 500 001 004 CN-021, CN 021
1/4" AC250 500001007 500-001-007, 500-001-007 CN-025, CN 025 C25 102-0101-02, 102 0101 02 015-525, 015 525
5/16" AC312 500001009 500-001-009, 500-001-009 CN-031, CN 031 C31 102-0101-03, 102 0101 03 015-527, 015 527
.33 AC330 CN-033, CN 033

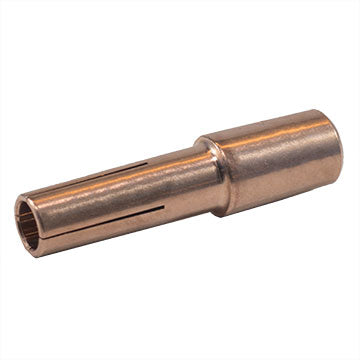

3/8" AC375 500001011 500-001-011, 500-001-011 CN-037, CN 037 C37 102-0101-04, 102 0101 04 015-528, 015 528
7/16" AC437 500001012 500-001-012, 500-001-012 CN-043, CN 043 C43 102-0101-12, 102 0101 12 015-529, 015 529

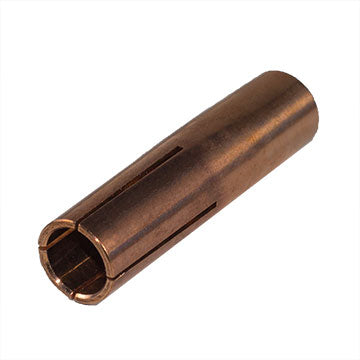

1/2" (1/4" HCA) AC500 500001014 500-001-014, 500-001-014 CN-050, CN 050 C50 102-0101-05, 102 0101 05 015-530, 015 530
9/16" AC562 500001015 500-001-015, 500-001-014 CN-056, CN 056 C56

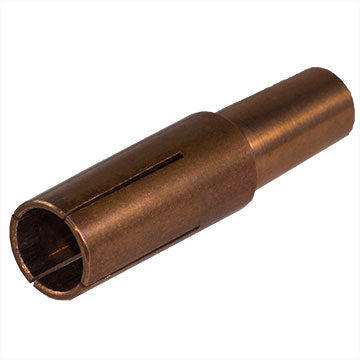

5/8" AC625 500001016 500-001-016, 500-001-016 CN-062, CN 062 C62 102-0101-06, 102 0101 06 015-538, 015 538
.680 AC680 CN-068, CN068 C68

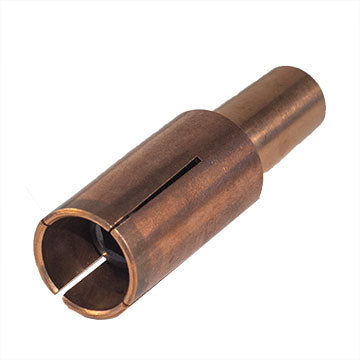

3/4" (3/8" HCA) AC750 500001018 500-001-018, 500-001-018 CN-075, CN 075 C75 102-0101-08, 102 0102 08 036-625, 036 625

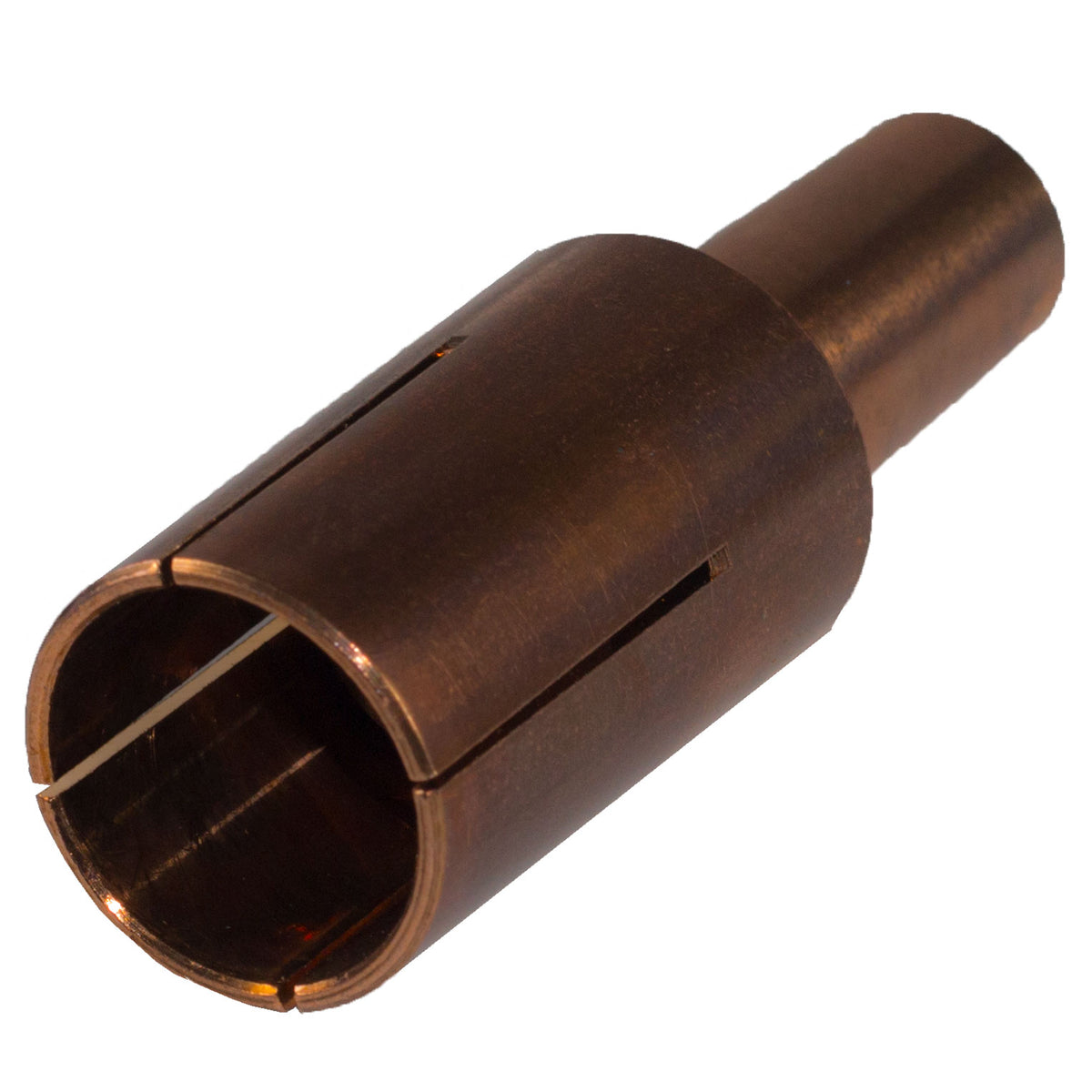

7/8" AC875 500001019 500-001-019, 500-001-019 CN-087, CN 087 C87 102-0101-09, 102 0101 09 043-013, 043 013
1" AC100 CN-100, CN 100 C1 015-543, 015 543
2mm AC2MM 500001342 500-001-342, 500 001 342 CN-002M, CN 002M CM2 015-510, 015 510
3mm AC3MM 500001135 500-001-135, 500 001 035 CM3 102-0101-24, 102 0101 24
4mm AC4MM 500001003 500-001-003, 500 001 003 CN-004M, CN 004M CM4 102-0101-25, 102 0101 25 015-512, 015 512
5mm AC5MM 500001427 500-001-427, 500 001 427 CN-018, CN 018 CM5 102-0101-26, 102 0101 26
6mm AC6MM 500001267 500-001-267, 500 001 267 CN-006M, CN 006M CM6 102-0101-27, 102 0101 27
8mm AC8MM 500001009 500-001-009, 500 001 009 CN-008M, CN 008M CM8 102-0101-28, 102 0101 28
10mm AC10MM 500001269 500-001-269, 500 001 269 CN-010M, CN 010M CM10 102-0101-29, 102 0101 29
12mm AC12MM 500001206 500-001-206, 500 001 206 CN-012M, CN 012M CM12 102-0101-30, 102 0101 30
14mm AC14MM 500001391 500-001-391, 500 001 391 CN-014M, CN 014M 102-0101-33, 102 0101 33
