Stud Gun Setup Guide for Insulation Pins
Follow these step-by-step instructions to properly set up your stud gun to weld insulation pins.
This setup works for AGM stud welder guns.

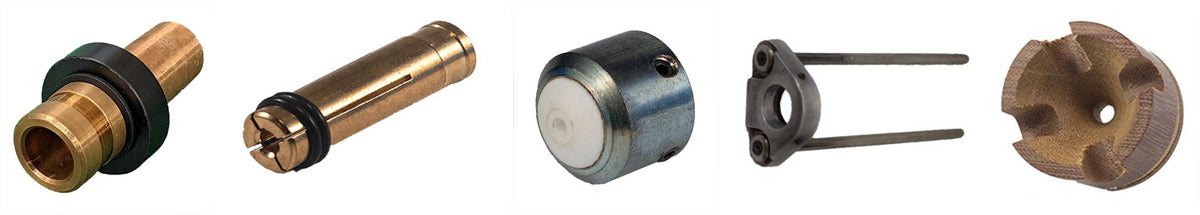

Required Parts
- ✓ AGM Collet Adaptor
- ✓ "B" Collet
- ✓ AGM Collet Protector
- ✓ AGM Foot Assembly
- ✓ Spark Shield for Pins Vented
1
STEP 1 - Insert collet adaptor
Insert the AGM Collet Adaptor into the gun. Tap with a rubber mallet to ensure a tight fit.
2
STEP 2 - insert "B" Collet
Insert the "B" Collet of appropriate size into AGM Collet Protector. Tighten the set screws.
3
STEP 3 - Add collet protector
Insert the AGM Collet Protector over the "B" Collet. Tighten the set screws.
4
5
STEP 5 - Add the foot assembly
Slide the foot piece assembly into holes in the face plate. Adjust so the insulation pin sticks out past the foot 1/4" and tighten 2 screws to hold the foot in place.

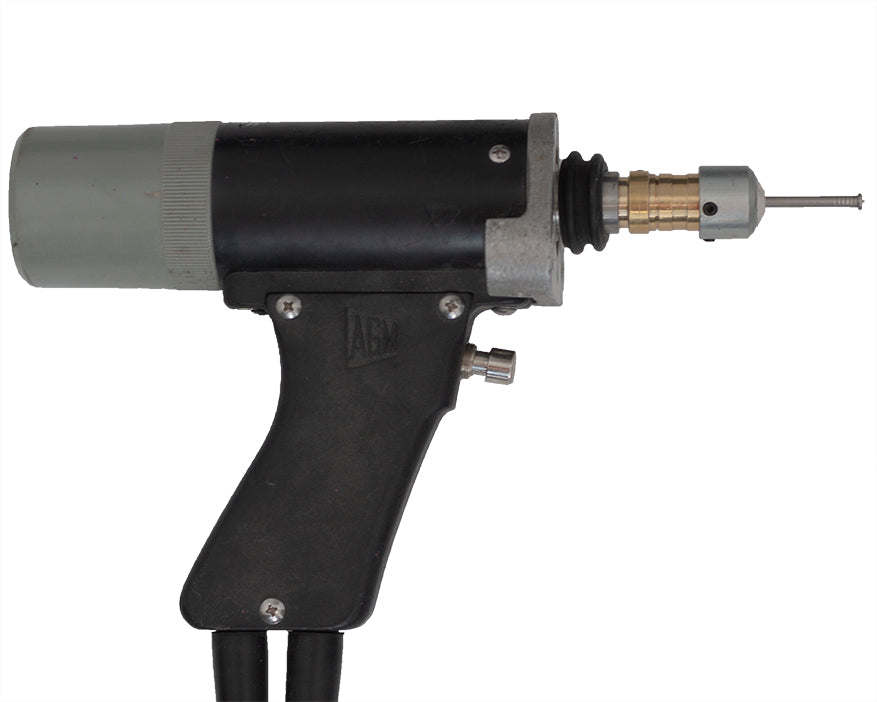

Setup Complete
Your stud welding gun is now properly configured and ready for use. For additional support or questions, contact our technical team.
