Light Duty CD Gun Part List for Proweld, Erico and HA Jones

Erico/Jones Models: PW500, PW600, LW700, PW800, PW1000, PW1500

Proweld Models: CD250, CD375, CD500, CD212, CD212P, CD312, CD512, UA720

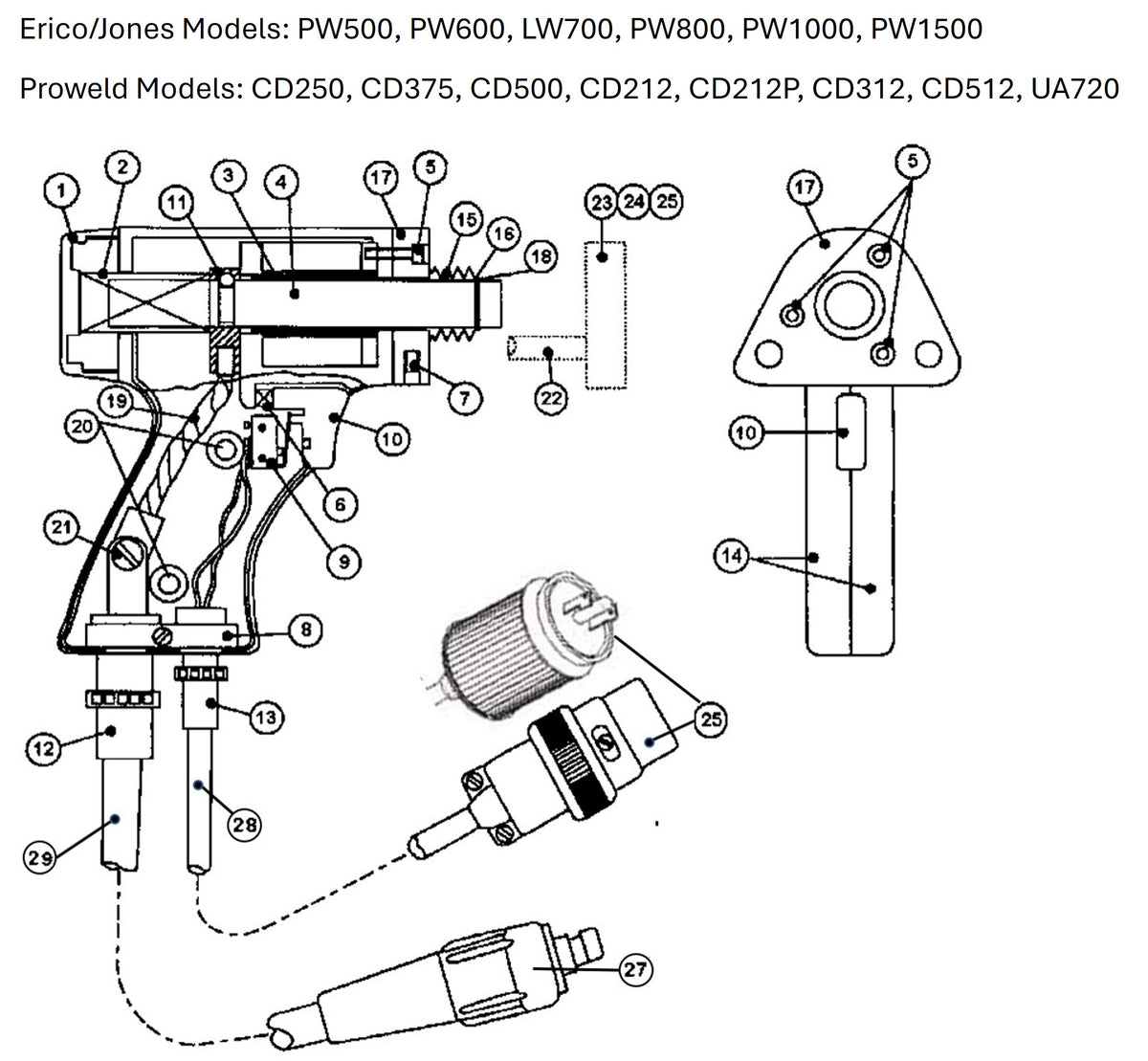

Light Duty CD Gun Exploded View for Proweld Erico and HA Jones CD Stud Welders

 CLICK ON THE DESCRIPTION TO VIEW THE PART AND ADD TO CART

ITEM PROWELD/ERICO PART # DESCRIPTION HANLON PART #
1 033-384 GUN (CD) REAR CAP MOLDED 6550
2 001-800 SPRING MAIN HEAVY SILVER 1540
3 033-610 GUN BEARING ASSEMBLY 1565
4 033-799 GUN SHAFT TUBE 1561
5 033-016 SOCKET CAP SCREW 8-32 X 3/4" 033-016
6 033-382 GUN TRIGGER SPRING 1516
7 049-955 SET SCREW 10-32 X 1/4" 049-955
8
GUN CABLE CLAMP (ALUM. BLOCK) 1570
9 033-404 TRIGGER SWITCH 1592
10 033-381 GUN TRIGGER BUTTON MOLDED 1515
11 036-496 GUN SHAFT BLOCK  1564
12 001-181 CABLE BOOT 9025
13 001-181 CABLE BOOT 9025
14 033-881 GUN BODY RH & LH STD, CD MACHINED 1511
15 033-445 GUN SHAFT BOOT ASSY 2000
16 033-447 GUN SHAFT BOOT RETAINING RING 70024
17 033-665 GUN FACEPLATE STD ADJUSTABLE 1518
18 033-446 GUN SHAFT BOOT SNAP RING 70025
19 033-608 GUN WELD PIGTAIL ASSEMBLY 1562
20 018-375 PAN HEAD SCREW 10-32 X 3/4" 018-375

21

21A

016-876



PAN HEAD SCREW 10-32 X 1/2" WITH #10 LOCK WASHER

CABLE LUG #4 CABLE #10 STUD

016-876

CL410

22 033-757 LEG STANDARD ADJUSTABLE 7" CDL7
23 009-929 FLAT WASHER #8 009-929
24 016-378 SOCKET CAP SCREW 10-32 X 5/8" 016-378
25 028-833 STANDARD FOOTPIECE CDF
26
R & S CONTROL CABLE CONNECTOR MALE (FOR OLDER MODELS AS SHOWN) CCRSM
26
HUBBEL CONTROL CABLE CONNECTOR MALE (NEWER MACHINES) CCHU-M
27
LIGHT DUTY CAMLOK #4 MALE LDCCM
28
16-2 CONTROL CABLE 1229
29
#4 WELD CABLE 1583







NOT SHOWN



SHAFT SPRING COPPER 1540-3


SHAFT SPRING GOLD 1540-2


SHAFT SPRING BLACK 1540-1


SHAFT SPRING RED 1540-4
