    • How to Set Up a Stud Gun for Welding CD Studs with a Collet Insert

    WELDER BRANDS:

    This setup works for Proweld, Midwest Fasteners, Erico, H.A. Jones, and SWS stud welder guns.

    PARTS YOU WILL NEED:

    Accessories Needed for Welding CD Studs with a Collet Insert

    B to CI Adaptor        Collet Insert                 CD Foot            CD Legs (2)

    STEP 1: Place the B to CI Adaptor inside the gun.  Tighten the set screws.

    Midwest CD Gun with Soyer to CI Adaptor

    STEP 2: Place the Collet Insert into the B to CI Adaptor.  Tighten the screws on the B to CI Adaptor.

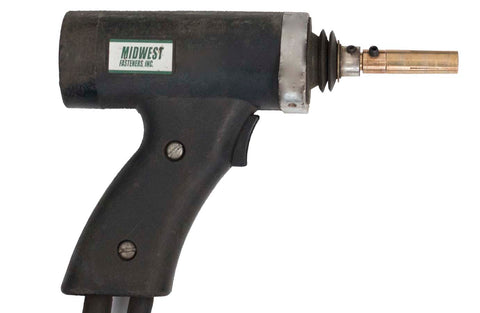

    Midwest CD Gun with B to CI Adaptor and Collet Insert

    STEP 3: Screw the legs into the foot.

    CD Stud Welder Foot and Legs



    STEP 4: Slide the foot piece assembly (CD foot and 2 CD Legs) into the holes in the face plate.  Line up the legs so the legs lines up with the face plate.  Adjust so the CD stud sticks out past the foot 1/8" to 3/16" (the plunge).  Tighten the set screws in the face plate.

     CD Stud Gun Set up with Collet Inserts
