Stud Gun Setup Guide for Cup Head Pins

Follow these step-by-step instructions to properly set up your stud gun to weld cup head pins.

This setup works for Truweld, Proweld, Midwest Fasteners, IWT, Erico, H.A. Jones, and SWS stud welder guns.

Required Parts

Magnetic Cup Head Chuck - Heavy Duty
1

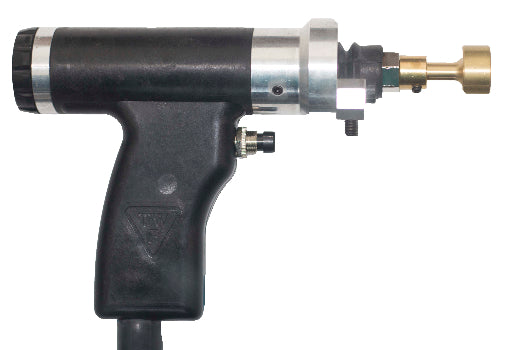

Insert chuck into gun.

Put magnetic cup head chuck into gun shaft and tighten set screws.



✓

Setup Complete

Your stud welding gun is now properly configured and ready for use. For additional support or questions, contact our technical team.
