Stud Gun Setup Guide for CD Studs using a Truweld Template tube adpator

This set up is helpful for when you need a precise location for a weld.  The Template Tube Adaptor comes in 1" and 1-1/4" O.D.  Hanlon Stud Welding recommends the 1-1/4" O.D. as it will allow you to change collets without taking the template tube adaptor off the gun.  This method works with CD studs 1" and shorter.

This setup works for Truweld and studpro stud welder guns.

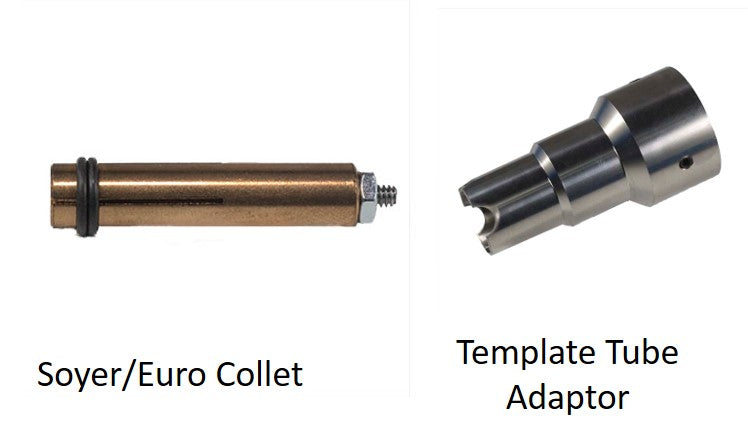

Required Parts

1

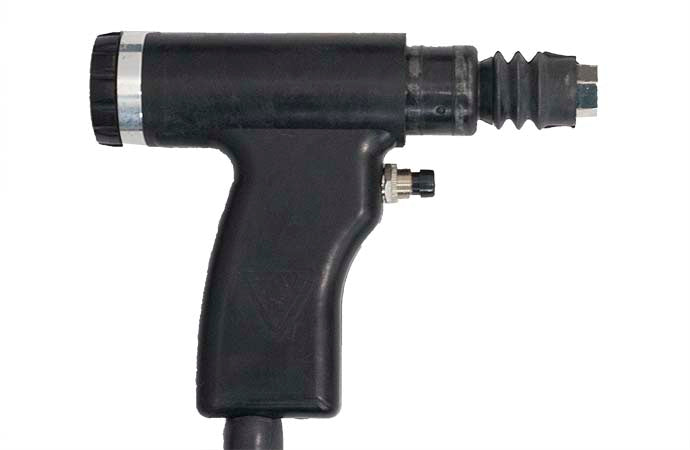

Remove Face Plate

Remove the standard face plate with 3 screws.







2

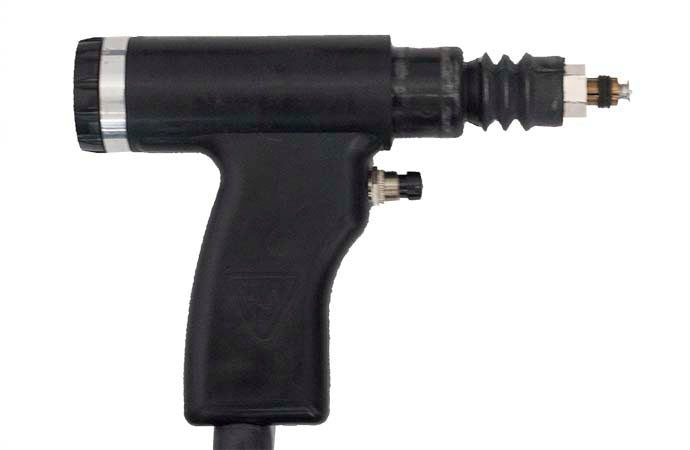

Insert Collet into the Gun

Put the Soyer/Euro collet into gun shaft.






3

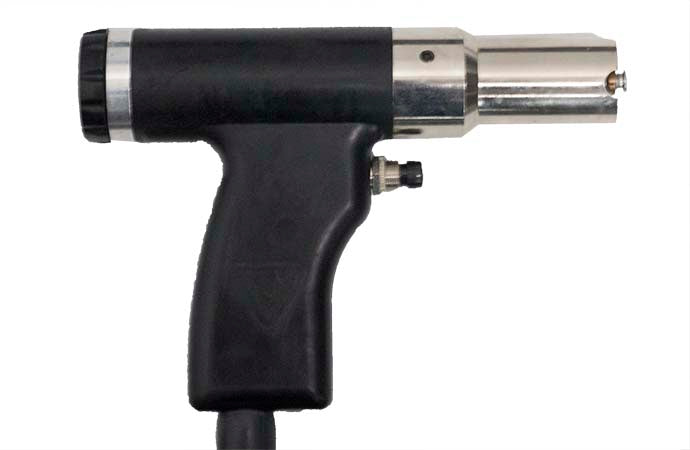

Add Template Tube

Put the Template Tube Adaptor on the gun.



.



4

Assemble the stud gun

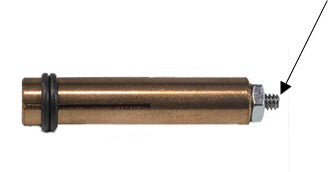

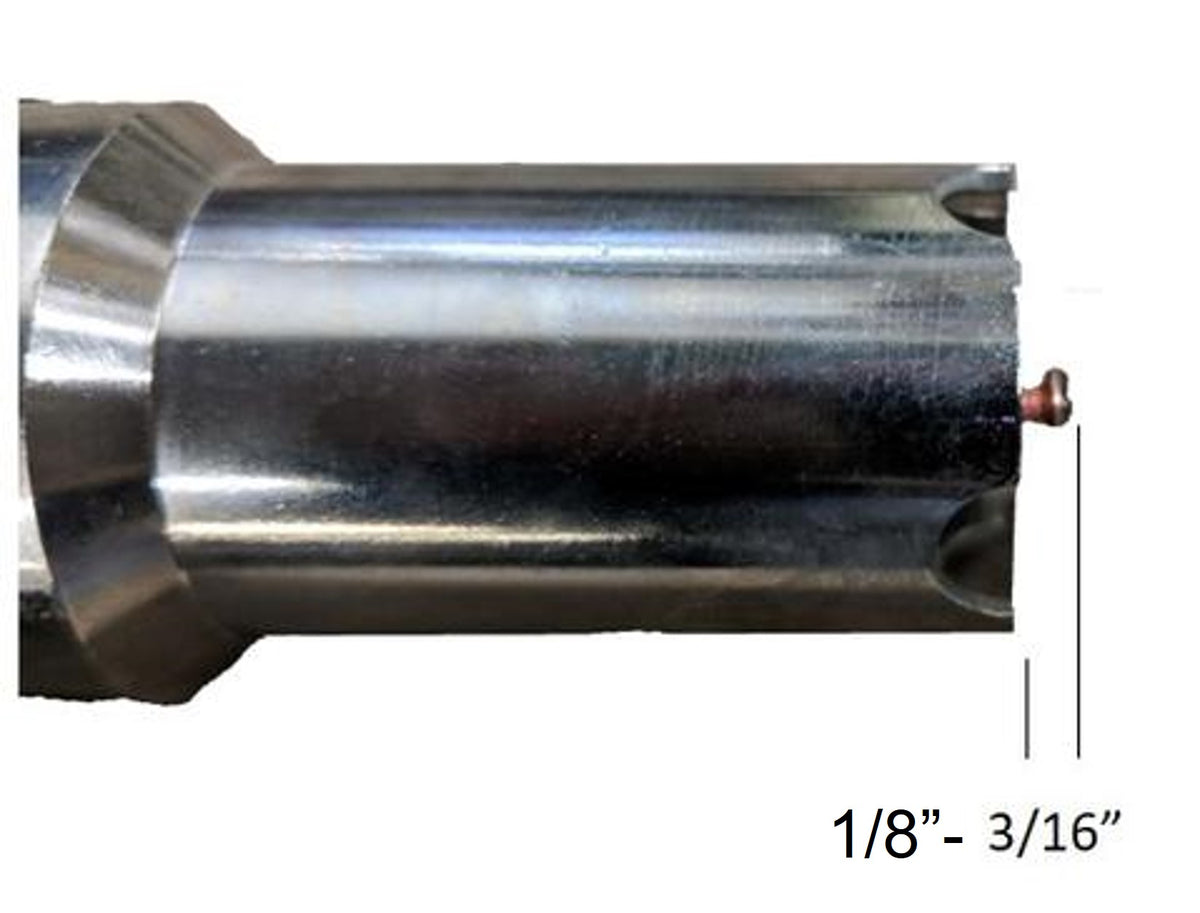

Turn the screw at the end of the Soyer/Euro Collet to adjust the length of the collet until 3/16" of the stud is sticking out.  Tighten the Soyer/Euro Collet with a tube wrench.


5

Tighten Screws for Adaptor

Tighten the template tube adaptor screws.

✓

Setup Complete

Your stud welding gun is now properly configured and ready for use. For additional support or questions, contact our technical team.
