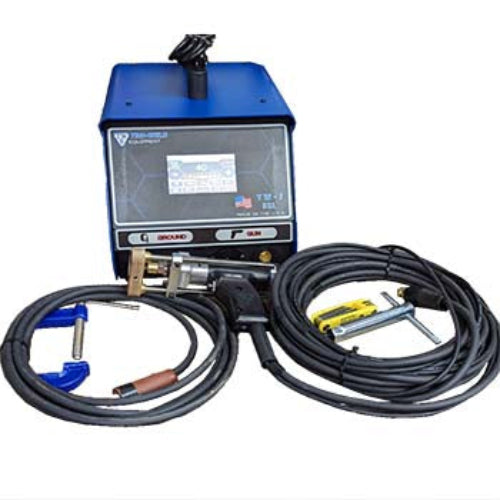

TWi-321
CD EquipmentThe latest solid state stud welding technology built into a compact, light weight, and rugged 120V CD stud welder. This stud welder is capable of welding pins, cup head pins, and CD studs ranging from 14-gauge up to 5/16" (M2-M8) full-flanged stainless steel studs. At 5/16" settings this welder can weld 14 studs per minute. Links: Spec Sheet User Manual
Includes:
• Intuitive Touchscreen Interface with Preset values for fast, accurate, and repeatable weld settings
• Set-Point Discharge: Unit discharges directly to a new set point without needing to discharge completely
• Universal Input Voltage: Plug and play, no need to re-tap the machine for llOV or 220V input voltages
• Low input voltage capability enables operation with long extension cords
• Contact and Trigger Indicators for fast troubleshooting of hand tool and weld cable maintenance issues
• Thermal and Voltage protection indicators to protect the unit from damage due to overheating or poor input power
• Rigid internal construction minimizes the possibility of components coming loose during rough handling or operations
• Hand tool has been ergonomically designed to reduce operator fatigue for increased welding efficiency
• Hand tool has an adjustable internal spring to apply the correct spring pressure for every welding application
• Hand tool can be configured for B collets, collet inserts, Euro collets, or standard tapered chucks
• More details can be found in the manual
14” L, 10.5” W, 11.5” H
20.8 Lbs
Two (2) year warranty period from date of purchase: TW-i-250 Power Supply
Ninety (90) day warranty period from date of purchase: Truweld LD CD Gun
All goods produced by Tru-Weld Equipment shall be warranted against defects including workmanship and components. No other warranties whether expressed, verbal, or implied will apply. Warranties only apply to the original equipment purchaser. Warranty claims will be limited to either repair or replacement of the defective materials by Tru-Weld Equipment. The location of where the warranty evaluation and repairs are made will be determined at the option of Tru-Weld Equipment . All warranty claim items returned to Tru-Weld Equipment will be at the customer’s expense. At the option of Tru-Weld Equipment the defect will either be repaired or replaced. Notice must be provided to Tru-Weld Equipment of a warranty defect within 30 days that the defect or failure is incurred. Warranties are not transferable. This warranty does not apply for equipment which is used improperly in any fashion including but not exclusive to the following: • Equipment which has been modified • Equipment which has not been installed properly • Equipment which has been used for purposes other than which it had been designed • Equipment which has not been properly maintained • Equipment which has been used after a defect had been found • Equipment which has been damaged in any way Tru-Weld Equipment will never be liable for consequential damages, loss, or expense occurring directly or indirectly from the use of the equipment covered in this warranty. All cables, cable sets, and connectors are not covered under warranty.
